在MonoGame中使用中文

发表于： 2017年7月17日 2019年12月27日
分类： Android, iOS, macOS, UWP, Windows Phone
10,928 views

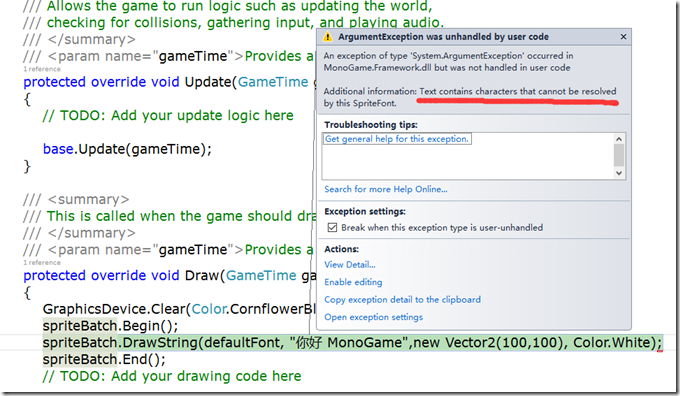

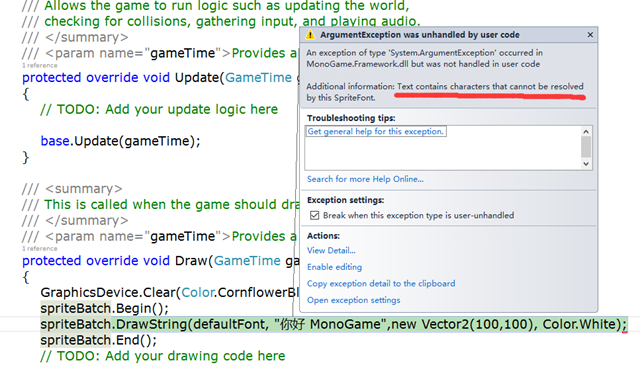

MonoGame和XNA一样显示中文会报错，如图，所以需要对英文以外的其他字符做特殊处理。

下面提供让MonoGame支持中文显示的办法：

环境：Visual Studio 2015 ， MonoGame版本3.5.1——这是个比较稳定的版本。推荐使用。

步骤：

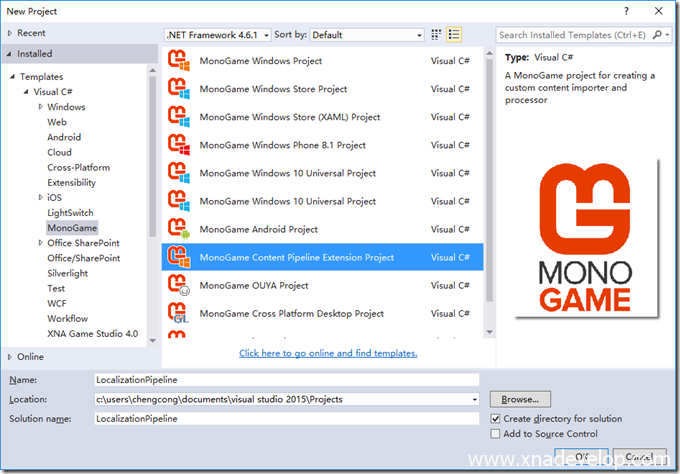

1.新建【MonoGame Cotent Pipeline Extension Project】命名为：LocalizationPipeline，删除ContentImporter1.cs，ContentProcessor1.cs

2.复制项目两个文件到项目中LocalizedFontDescription.cs，LocalizedFontProcessor.cs

#region File Description
//-----------------------------------------------------------------------------
// LocalizedFontDescription.cs
//
// Microsoft XNA Community Game Platform
// Copyright (C) Microsoft Corporation. All rights reserved.
//-----------------------------------------------------------------------------
#endregion

#region Using Statements
using System.Collections.Generic;
using Microsoft.Xna.Framework.Content;
using Microsoft.Xna.Framework.Content.Pipeline.Graphics;
#endregion

namespace LocalizationPipeline
{
    /// <summary>
    /// Normally, when you add a .spritefont file to your project, this data is
    /// deserialized into a FontDescription object, which is then built into a
    /// SpriteFontContent by the FontDescriptionProcessor. But to localize the
    /// font, we want to add some additional data, so our custom processor can
    /// know what .resx files it needs to scan. We do this by defining our own
    /// custom font description class, deriving from the built in FontDescription
    /// type, and adding a new property to store the resource filenames.
    /// </summary>
    class LocalizedFontDescription : FontDescription
    {
        /// <summary>
        /// Constructor.
        /// </summary>
        public LocalizedFontDescription()
            : base("Arial", 14, 0)
        {
        }


        /// <summary>
        /// Add a new property to our font description, which will allow us to
        /// include a ResourceFiles element in the .spritefont XML. We use the
        /// ContentSerializer attribute to mark this as optional, so existing
        /// .spritefont files that do not include this ResourceFiles element
        /// can be imported as well.
        /// </summary>
        [ContentSerializer(Optional = true, CollectionItemName = "Resx")]
        public List<string> ResourceFiles
        {
            get { return resourceFiles; }
        }

        List<string> resourceFiles = new List<string>();
    }
}

#region File Description

//-----------------------------------------------------------------------------

// LocalizedFontDescription.cs

// Microsoft XNA Community Game Platform

//-----------------------------------------------------------------------------

#endregion

#region Using Statements

using System.Collections.Generic;

using Microsoft.Xna.Framework.Content;

using Microsoft.Xna.Framework.Content.Pipeline.Graphics;

#endregion

namespace LocalizationPipeline

{

/// <summary>

/// Normally, when you add a .spritefont file to your project, this data is

/// deserialized into a FontDescription object, which is then built into a

/// SpriteFontContent by the FontDescriptionProcessor. But to localize the

/// font, we want to add some additional data, so our custom processor can

/// know what .resx files it needs to scan. We do this by defining our own

/// custom font description class, deriving from the built in FontDescription

/// type, and adding a new property to store the resource filenames.

/// </summary>

class LocalizedFontDescription : FontDescription

{

/// <summary>

/// Constructor.

/// </summary>

public LocalizedFontDescription()

: base("Arial", 14, 0)

{

}

/// <summary>

/// Add a new property to our font description, which will allow us to

/// include a ResourceFiles element in the .spritefont XML. We use the

/// ContentSerializer attribute to mark this as optional, so existing

/// .spritefont files that do not include this ResourceFiles element

/// can be imported as well.

/// </summary>

[ContentSerializer(Optional = true, CollectionItemName = "Resx")]

public List<string> ResourceFiles

{

get { return resourceFiles; }

}

List<string> resourceFiles = new List<string>();

}

#region File Description
//-----------------------------------------------------------------------------
// LocalizedFontProcessor.cs
//
// Microsoft XNA Community Game Platform
// Copyright (C) Microsoft Corporation. All rights reserved.
//-----------------------------------------------------------------------------
#endregion

#region Using Statements
using System.IO;
using System.Xml;
using Microsoft.Xna.Framework.Content.Pipeline;
using Microsoft.Xna.Framework.Content.Pipeline.Graphics;
using Microsoft.Xna.Framework.Content.Pipeline.Processors;
#endregion

namespace LocalizationPipeline
{
    /// <summary>
    /// Custom processor extends the SpriteFont build process to scan over the resource
    /// strings used by the game, automatically adding whatever characters it finds in
    /// them to the font. This makes sure the game will always have all the characters
    /// it needs, no matter what languages it is localized into, while still producing
    /// an efficient font that does not waste space on unnecessary characters. This is
    /// especially useful for languages such as Japanese and Korean, which have
    /// potentially thousands of different characters, although games typically only
    /// use a small fraction of these. Building only the characters we need is far more
    /// efficient than if we tried to include the entire CJK character region.
    /// </summary>
    [ContentProcessor]
    class LocalizedFontProcessor : ContentProcessor<LocalizedFontDescription,
                                                    SpriteFontContent>
    {
        /// <summary>
        /// Converts a font description into SpriteFont format.
        /// </summary>
        public override SpriteFontContent Process(LocalizedFontDescription input,
                                                  ContentProcessorContext context)
        {
            // Scan each .resx file in turn.
            foreach (string resourceFile in input.ResourceFiles)
            {
                string absolutePath = Path.GetFullPath(resourceFile);

                // Make sure the .resx file really does exist.
                if (!File.Exists(absolutePath))
                {
                    throw new InvalidContentException("Can't find " + absolutePath);
                }

                // Load the .resx data.
                XmlDocument xmlDocument = new XmlDocument();

                xmlDocument.Load(absolutePath);

                // Scan each string from the .resx file.
                foreach (XmlNode xmlNode in xmlDocument.SelectNodes("root/data/value"))
                {
                    string resourceString = xmlNode.InnerText;

                    // Scan each character of the string.
                    foreach (char usedCharacter in resourceString)
                    {
                        input.Characters.Add(usedCharacter);
                    }
                }

                // Mark that this font should be rebuilt if the resource file changes.
                context.AddDependency(absolutePath);
            }

            // After adding the necessary characters, we can use the built in
            // FontDescriptionProcessor to do the hard work of building the font for us.
            return context.Convert<FontDescription,
                                   SpriteFontContent>(input, "FontDescriptionProcessor");
        }
    }
}

#region File Description

//-----------------------------------------------------------------------------

// LocalizedFontProcessor.cs

// Microsoft XNA Community Game Platform

//-----------------------------------------------------------------------------

#endregion

#region Using Statements

using System.IO;

using System.Xml;

using Microsoft.Xna.Framework.Content.Pipeline;

using Microsoft.Xna.Framework.Content.Pipeline.Graphics;

using Microsoft.Xna.Framework.Content.Pipeline.Processors;

#endregion

namespace LocalizationPipeline

{

/// <summary>

/// Custom processor extends the SpriteFont build process to scan over the resource

/// strings used by the game, automatically adding whatever characters it finds in

/// them to the font. This makes sure the game will always have all the characters

/// it needs, no matter what languages it is localized into, while still producing

/// an efficient font that does not waste space on unnecessary characters. This is

/// especially useful for languages such as Japanese and Korean, which have

/// potentially thousands of different characters, although games typically only

/// use a small fraction of these. Building only the characters we need is far more

/// efficient than if we tried to include the entire CJK character region.

/// </summary>

[ContentProcessor]

class LocalizedFontProcessor : ContentProcessor<LocalizedFontDescription,

SpriteFontContent>

{

/// <summary>

/// Converts a font description into SpriteFont format.

/// </summary>

public override SpriteFontContent Process(LocalizedFontDescription input,

ContentProcessorContext context)

{

// Scan each .resx file in turn.

foreach (string resourceFile in input.ResourceFiles)

{

string absolutePath = Path.GetFullPath(resourceFile);

// Make sure the .resx file really does exist.

if (!File.Exists(absolutePath))

{

throw new InvalidContentException("Can't find " + absolutePath);

}

// Load the .resx data.

XmlDocument xmlDocument = new XmlDocument();

xmlDocument.Load(absolutePath);

// Scan each string from the .resx file.

foreach (XmlNode xmlNode in xmlDocument.SelectNodes("root/data/value"))

{

string resourceString = xmlNode.InnerText;

// Scan each character of the string.

foreach (char usedCharacter in resourceString)

{

input.Characters.Add(usedCharacter);

}

// Mark that this font should be rebuilt if the resource file changes.

context.AddDependency(absolutePath);

}

// After adding the necessary characters, we can use the built in

// FontDescriptionProcessor to do the hard work of building the font for us.

return context.Convert<FontDescription,

SpriteFontContent>(input, "FontDescriptionProcessor");

}

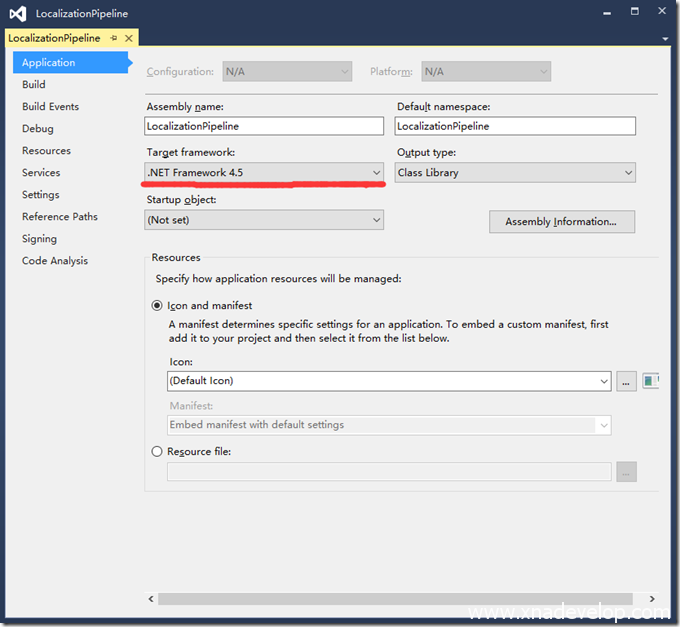

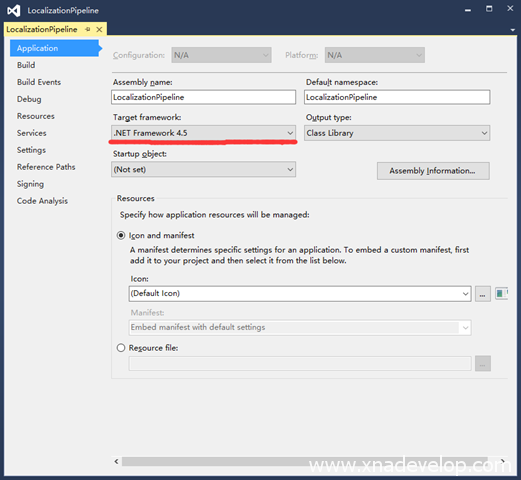

3.选中LocalizationPipeline项目点击右键选择Properties，.net 框架改成4.5

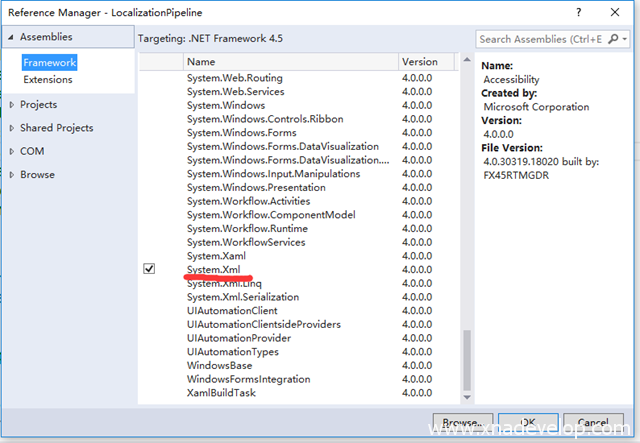

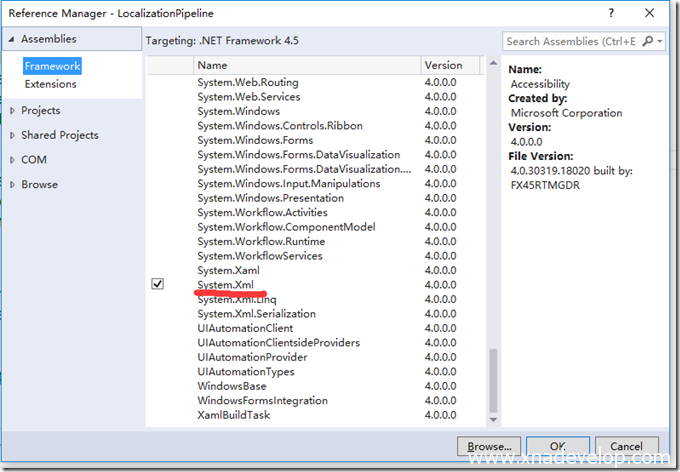

4.添加System.Xml.dll引用

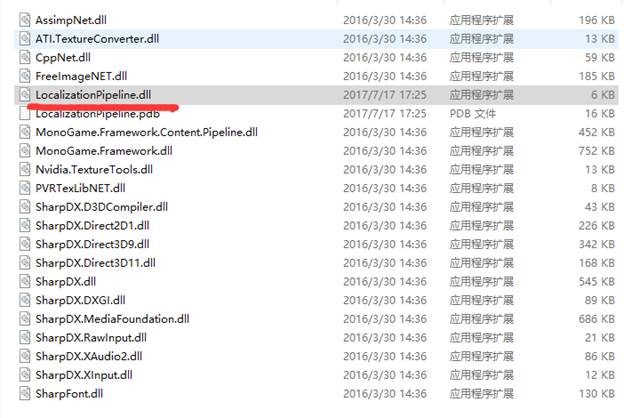

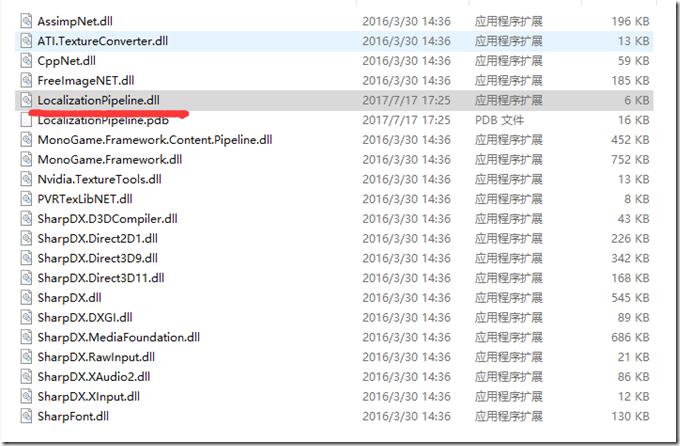

5.编译生成LocalizationPipeline.dll复制备用，一般在LocalizationPipeline\bin\Debug中

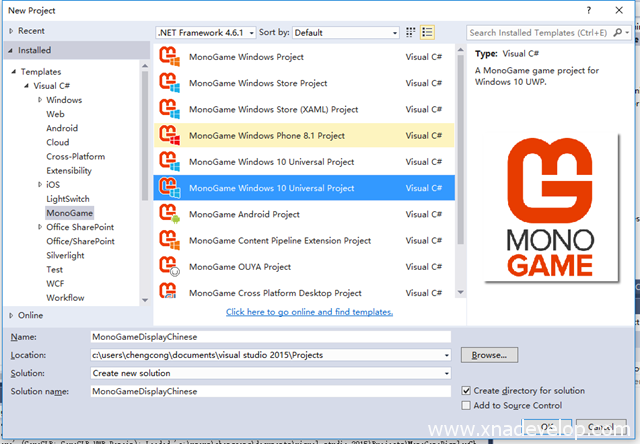

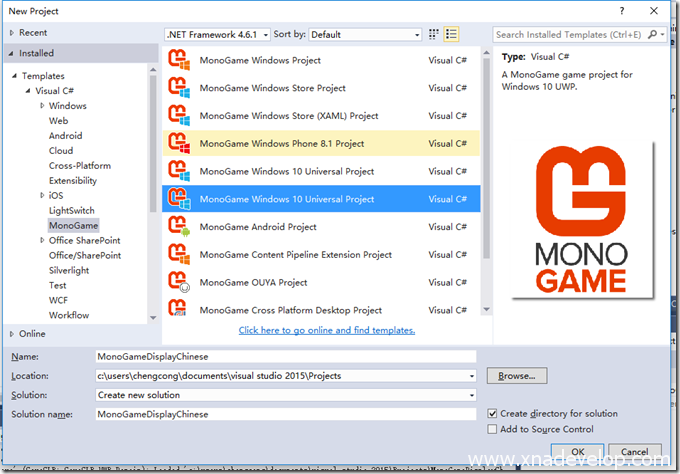

6.新建MonoGame游戏项目，命名为：MonoGameDisplayChinese，以UWP项目为例

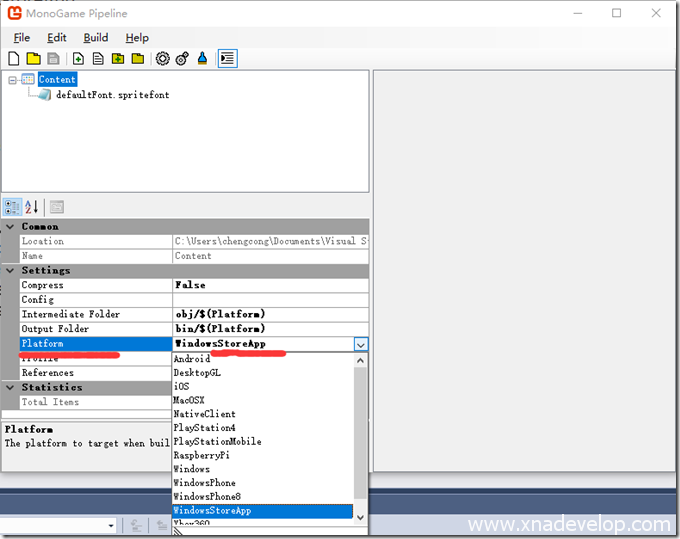

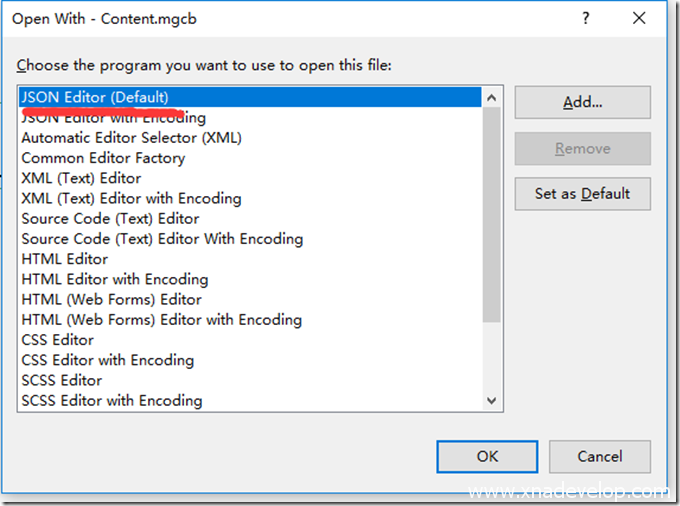

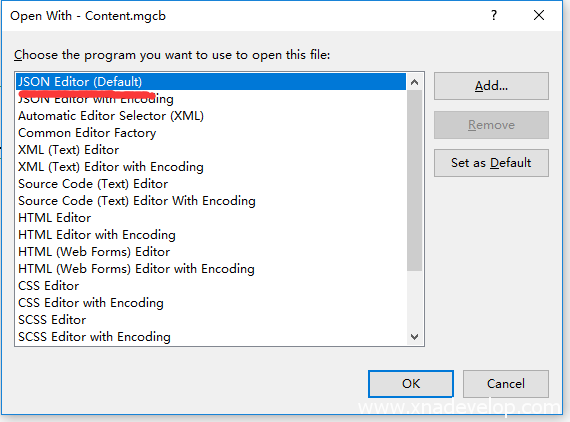

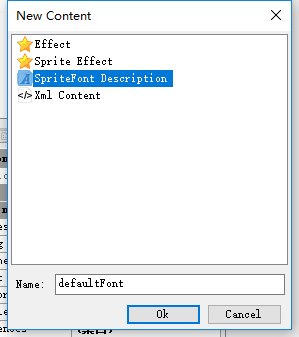

7.找到项目Content目录的Content.mgcb，双击打开它，选中Content右键【Add】【New Item】【SpriteFont Description】命名为defaultFont，在Content目录可以就找到defaultFont.spritefont文件。

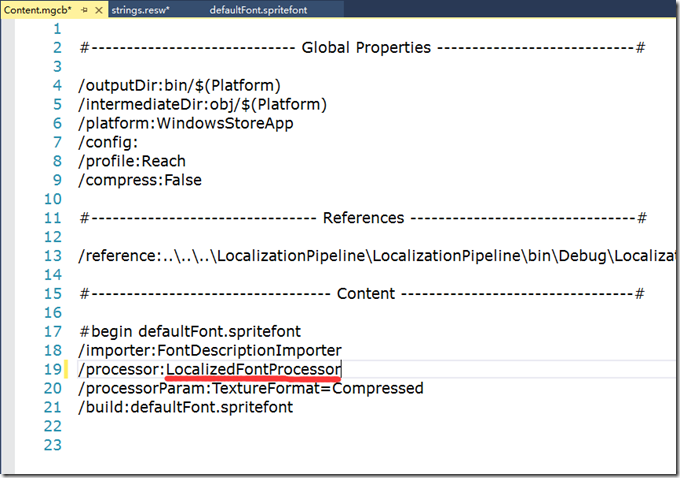

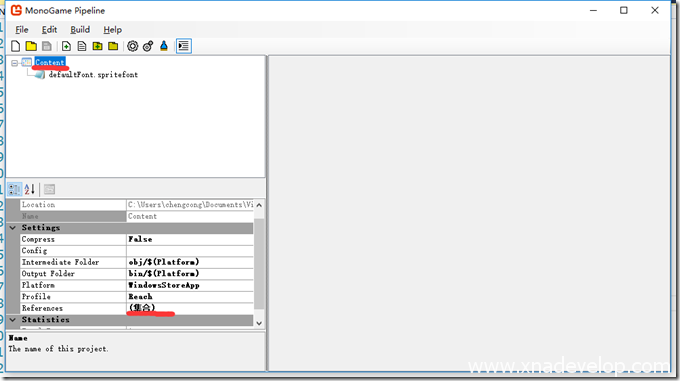

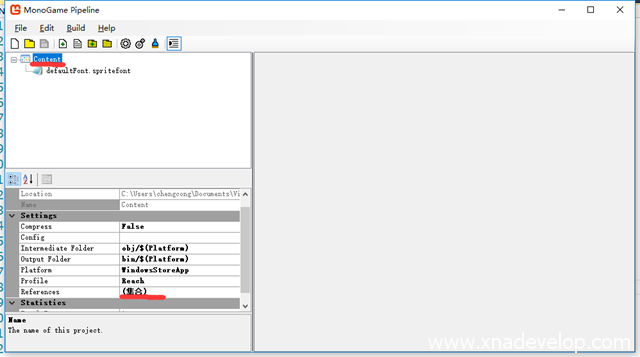

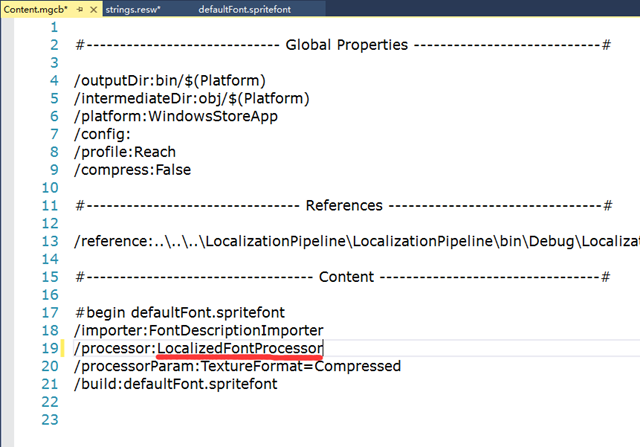

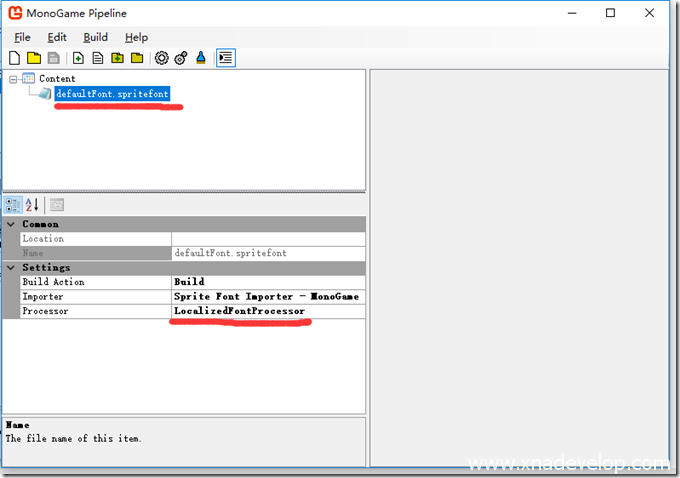

接着选中Content.mgcb中Content，添加references ，引用LocalizationPipeline.dll

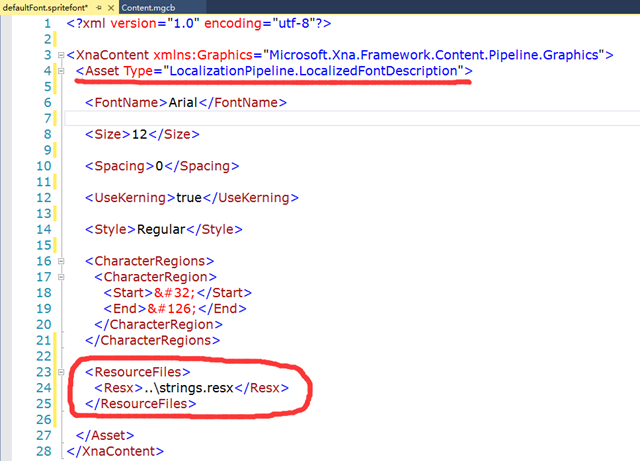

8.使用Visual Studio打开defaultFont.spritefont,修改XnaContent标签中的Asset的Type值为LocalizationPipeline.LocalizedFontDescription，

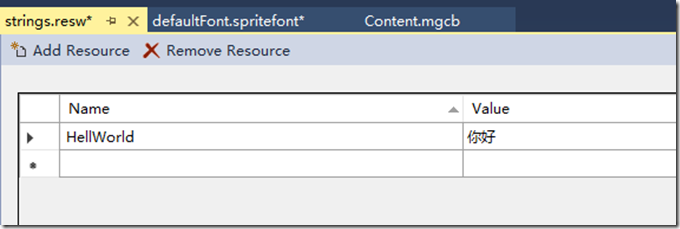

9.在MonoGameDisplayChinese新建增加strings.resw（UWP项目.resw，其他项目可以是.resx）

Name可以是任意名字，Value中可以存储使用到的任何中文字符

文件ResourceFiles标签到Asset节点中

<?xml version="1.0" encoding="utf-8"?>
<XnaContent xmlns:Graphics="Microsoft.Xna.Framework.Content.Pipeline.Graphics">
  <Asset Type="LocalizationPipeline.LocalizedFontDescription">
    <FontName>Microsoft JhengHei</FontName>
    <Size>14</Size>
    <Spacing>0</Spacing>
    <UseKerning>true</UseKerning>
    <Style>Regular</Style>
    <CharacterRegions>
      <CharacterRegion>
        <Start>&#32;</Start>
        <End>&#126;</End>
      </CharacterRegion>
    </CharacterRegions>
    <ResourceFiles>
      <Resx>..\strings.resw</Resx>
    </ResourceFiles>
  </Asset>
</XnaContent>
